Description

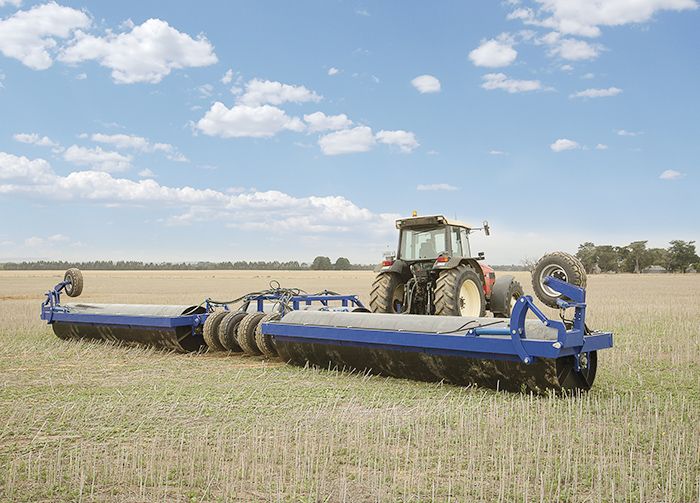

TRI-PLEX Land Roller
Used for surface crushing and compaction after plowing or after sowing, the working part is the pressure roller.The side roller can folded with hydraulic cylinder.This product adopts hydraulic locking and lifting function, which is convenient for operation. The connecting part of the bearing seat is added with cushioning and locking device, which relieves the impact of equipment during work and increases the service life of the equipment.
Model |
1YG-3012 |
1YG-4212 |
1YG-5212 |
1YG-6212 |
Working Size (LxWxH) |
5800x9400x1230 |
5800x13100x1230 |
5800x16100x1230 |
5800x18500x1230 |
Weight (kg) |
6900,8000 |
8200,9400 |
9100,10800 |
12600,18900 |
Working Width(mm) |
9100 |
12800 |
15800 |
18200 |
Transport Width(mm) |
3800 |
3800 |
3800 |
6150 |
No.of Barrel |
3 |
3 |
3 |
3 |
Roller Thickness(mm) |
12,16 |
|||
Roller Diameter(mm) |
Φ1020 |
Φ1020 |
Φ1020 |
Φ1020 |
Matched Power (HP) |
160-200 |
200-240 |
200-240 |
260-300 |
Linkage |
Trailed |
Trailed |
Trailed |
Trailed |
