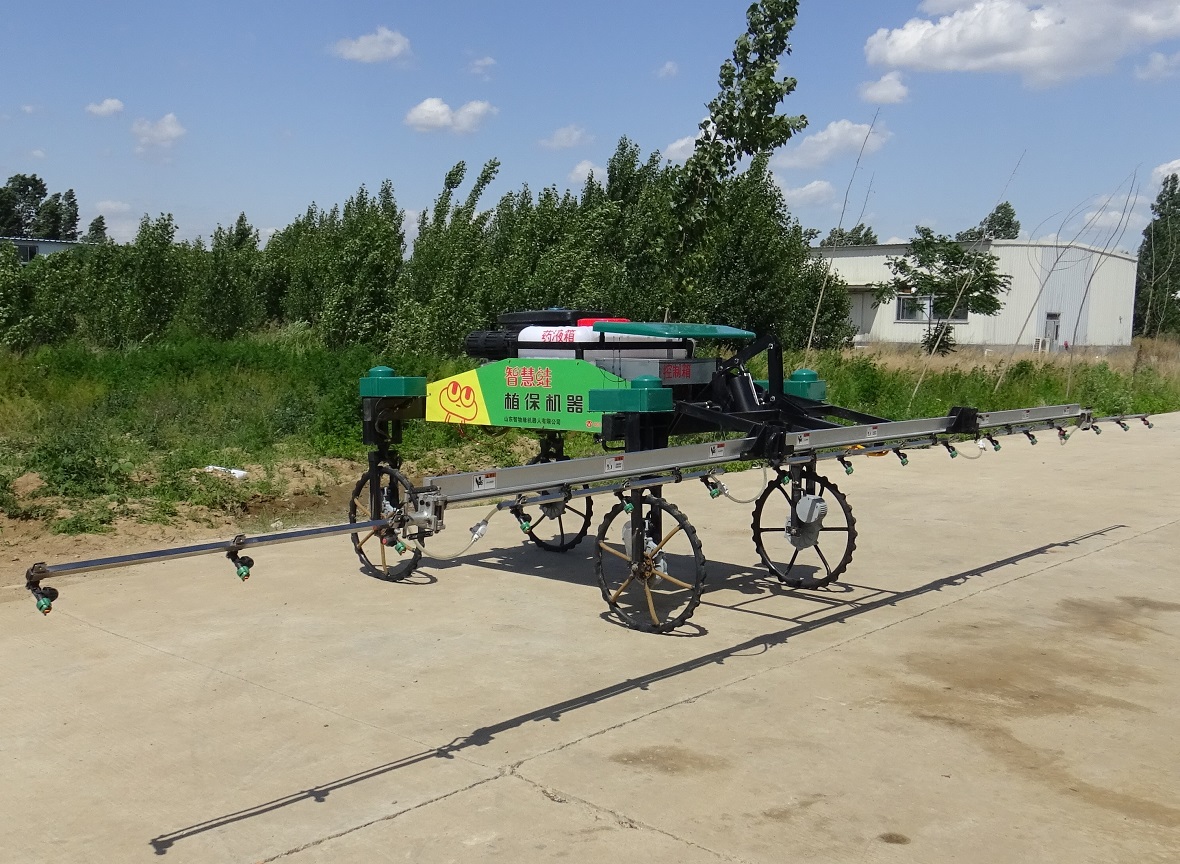

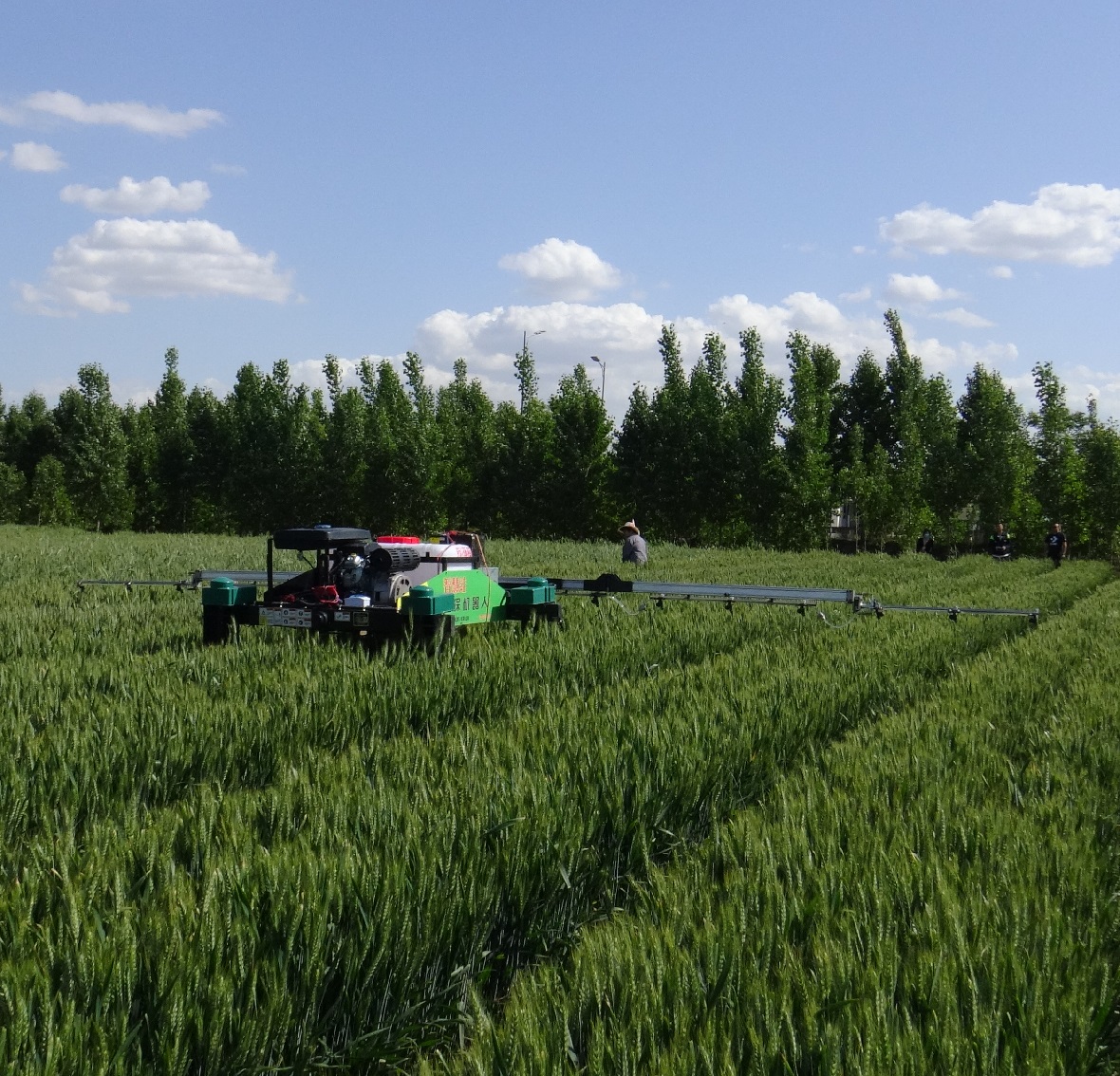

3WPZ-120A self propelled boom sprayer - driverless machine - plant protection robot

植保机器人产品特点
Characteristics of plant protection robot products
1. 高效率：作业效率最高可达60亩/小时；
1. High efficiency: the highest operation efficiency can reach 60 mu / h;
2. 大容量药箱：200L药箱（每箱药液有效作业面积30-40亩）；
2. Large capacity medicine box: 200L medicine box (effective operation area of each box is 30-40 mu);
3. 宽喷幅：最大喷福9m，喷幅宽度可调；
3. Wide spray width: the maximum spray width is 9m, and the spray width is adjustable;
4. 远程遥控：1000米范围内控制机器行走、转向、平移、喷雾；
4. remote control: control the machine walking, turning, translating and spraying within 1000 meters.
5. 四轮驱动：小电流，大扭矩，强动力，通过性强；
5. Four wheel drive: small current, large torque, strong power, strong trafficability;
6. 自动切换方向轮：向前时由前轮控制方向，向后时由后轮控制方向；
6. Automatic switching direction wheel: the front wheel controls the direction in the forward direction and the rear wheel controls the direction in the backward direction;
7. 四轮四向平移：地头不需转弯调头，喷雾不留死角；
7. four wheel four translations: no need to turn around at the end of the field, spray without leaving dead ends.
8. 德国进口高精度喷透：保证药液充分雾化，无滴漏，节肥省药；
8. Germany imported high-precision spray: to ensure the full atomization of liquid medicine, no dripping and leakage, and save fertilizer and medicine;
9. 安全：完全实现人药分离，避免了由于药物对人体的危害；
9. Safety: completely realize the separation of human and drug, and avoid the harm of drugs to human body;
10. 低耗能：植保机器人采用13.5kw汽油发电机动力系统，汽油发电机工作一亩地只需要2毛钱。
10. Low energy consumption: the plant protection robot uses a 13.5KW gasoline generator power system, and the gasoline generator only costs 20 cents per mu of land.
11. 高收益：平均每分钟喷药1亩地，从每小时30亩到每小时60亩，按每亩地收益10元计算（包括打药费和农药叶面肥），每天轻松打300亩，毛收入3000元，一年轻松收入10万元。
11. High income: spraying 1 mu of land per minute, from 30 mu per hour to 60 mu per hour, according to the income of 10 yuan per mu of land (including the cost of medicine and pesticide foliar fertilizer), 300 mu of land can be easily sprayed every day, the gross income is 3000 yuan, and the annual income is 100000 yuan.
12. 适应性强：与飞机相比，可以喷洒除草剂，与拖拉机相比植保机器人的轮子只有3公分，通过性强不压苗。

12. Strong adaptability: compared with the aircraft, it can spray herbicides. Compared with the tractor, the wheel of the plant protection robot is only 3cm, with strong trafficability and no pressure on the seedlings.
