Detailed explanation of the performance of YTO ME704N wheeled tractor
YTO ME704-N
Why was this YTO ME704-N tractor warmly pursued by the market as soon as it was launched? Let's analyze the reasons from eight aspects. (editor's note: YTO ME704-N is divided into ordinary model and upgraded model with cab. The author of this article mainly introduces the ordinary model.)

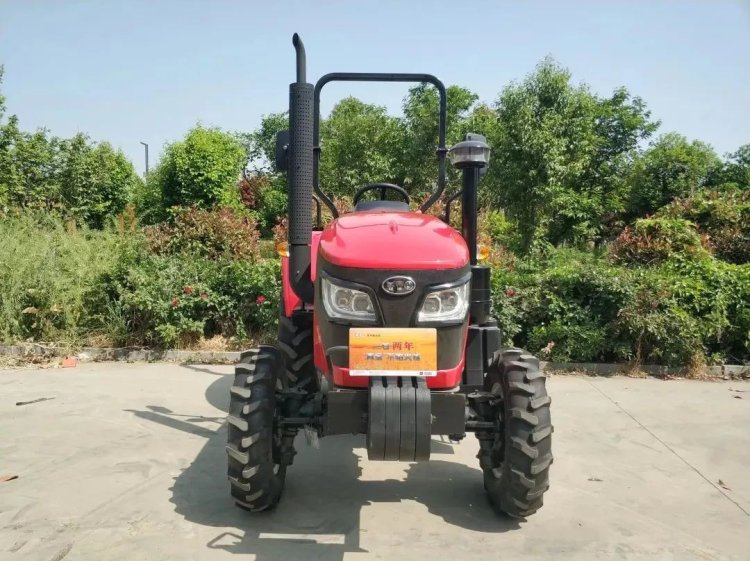

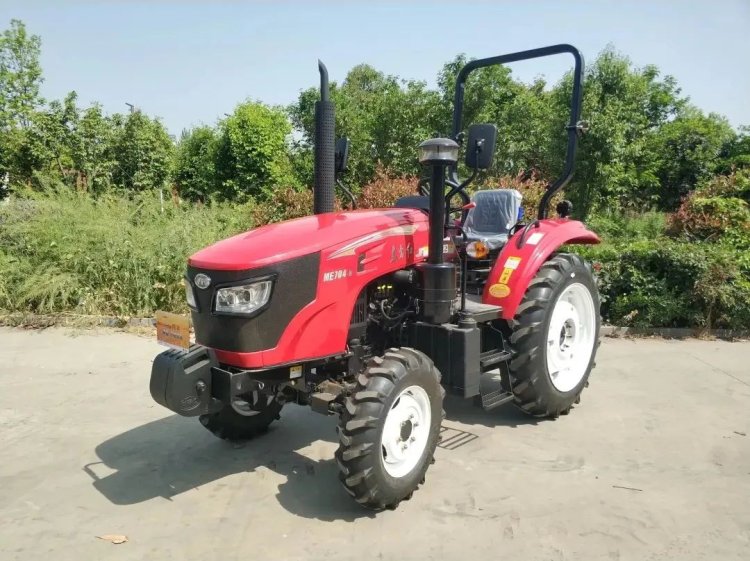

Look at the overall dimensions of the whole vehicle. Its length is 3.66 meters, width is 1.51 meters, height is 2.27 meters, compact structure, small turning radius, is a very small tractor.
The ground clearance of the chassis is 28cm, and the chassis is relatively high, which can better adapt to different land operations.
The minimum service mass of the whole vehicle is 2.1 tons, and 220 kg front and rear counterweights can be added. The tires are equipped with Xuzhou a-brand tires of 7.50-16 and 11.2-28, which are of high quality.

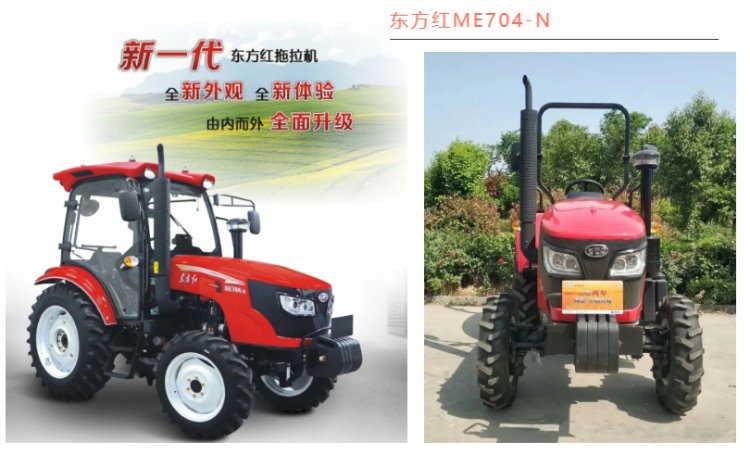

The front hood is a new design style, which still adopts the elements of the YTO family. It is stable and atmospheric, with smooth lines, more visual impact, and a stronger sense of hierarchy. The front ventilation grid adopts full mesh, and the grid is increased by 50%. On the premise of increasing the air intake, it is more youthful.

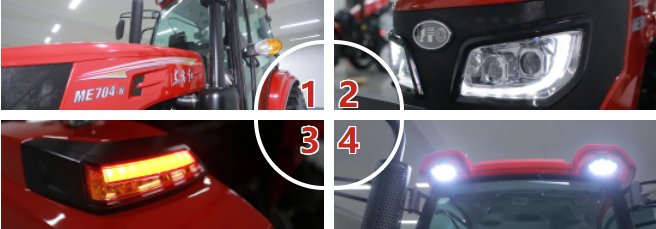

A new design upgrade has been carried out for the headlights. The double lens lamp group is used for the high and low beams, so that the spotlight of the emitted light is stronger and the irradiation distance is longer, so that our line of sight is better when we work at night.
The headlights are also equipped with streamlined LED daytime running lights and turn signals, which are highly recognizable and safer to drive.
The rear brake lamp and side marker lamp also adopt LED lamp group, which is more scientific and technological.

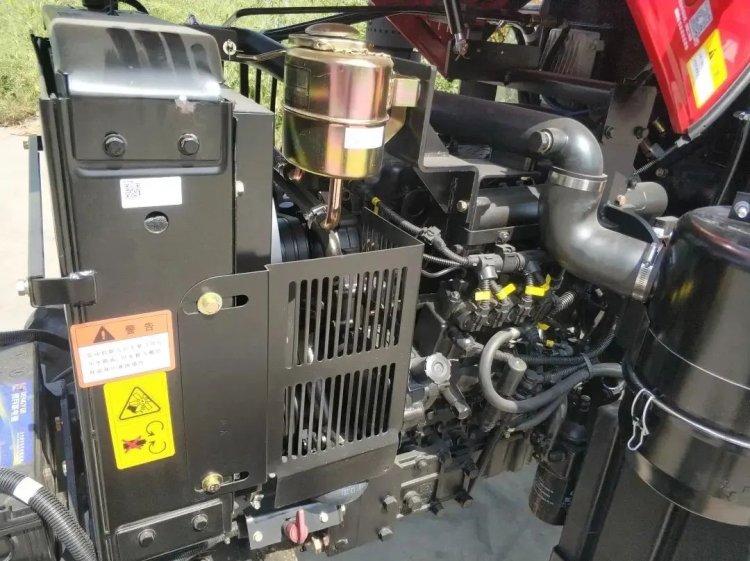

The engine is a 51.5 kW, 70 HP four cylinder direct injection energy-saving diesel engine powered by YTO, equipped with a three gear fuel-saving switch.
It is characterized by low fuel consumption, large torque reserve, good power and economic performance, and its forward speed can reach up to 32 kilometers per hour, which is quite fast,

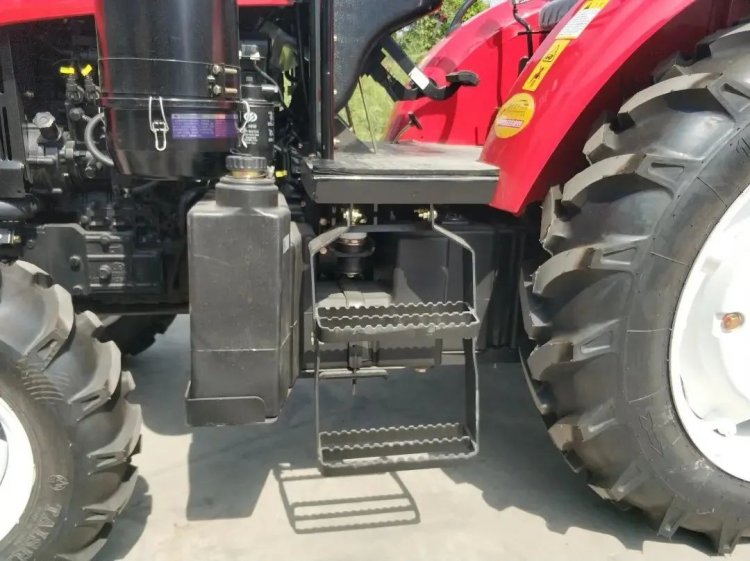

Its fuel tank has also been upgraded this year, with a maximum of 60 liters of fuel. It is on the left side of the car. It is convenient to refuel and has a longer continuous working time.

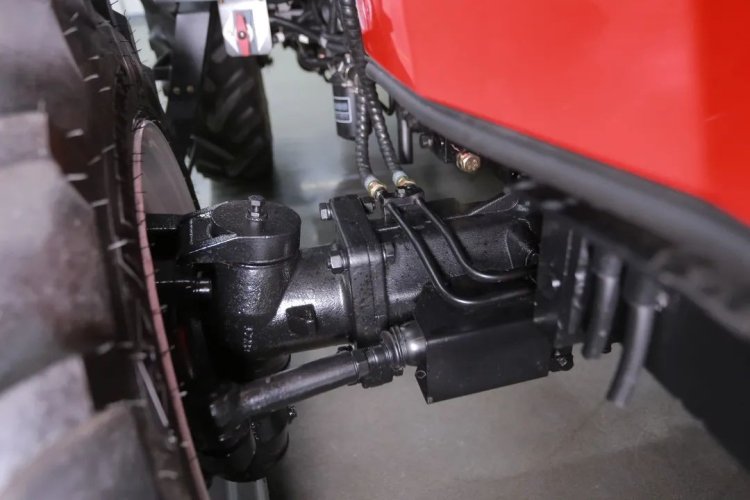

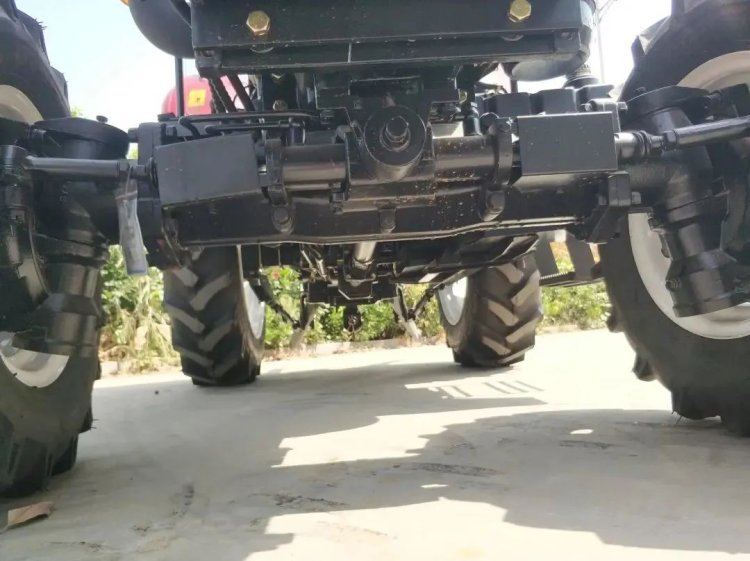

4. The front axle and chassis are solid and durable
The latest YTO chassis, this YTO chassis, is quite good in the public praise.
This new chassis has been strengthened this year. The box is wider and stronger. The gears, shafts, shells and other parts in the gearbox are self-made by Dongfanghong factory. The parts have high concentricity, flatness, more reliable use and longer service life. The gear shifting structure inside is meshing sleeve gear shifting, and is also equipped with the most advanced anti shift structure to automatically prevent gear shifting.

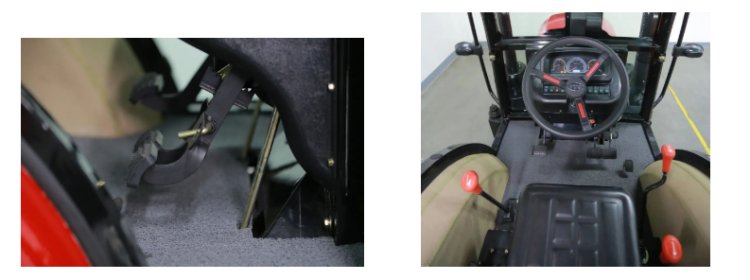

5. The clutch is easy to operate
6. The control system is light and flexible

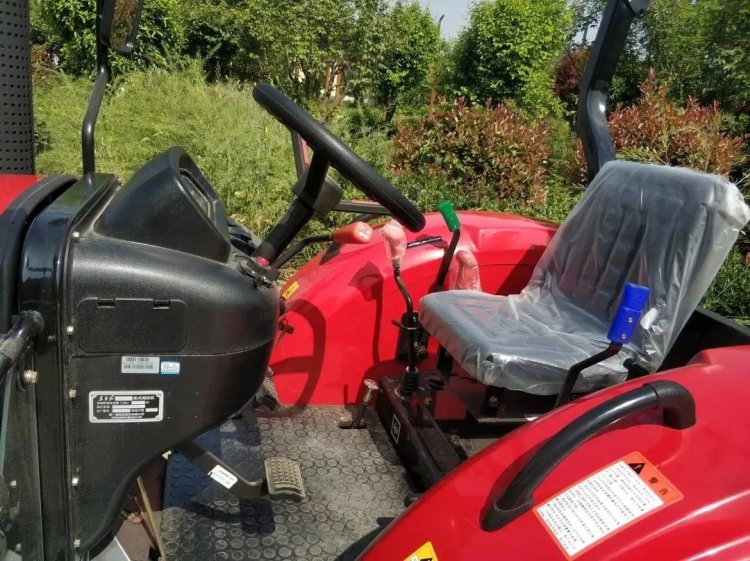

Shuttle gear shifting is adopted for forward and backward, which is on the left side of the steering wheel. Pushing forward is forward, pulling back is backward, and the control is very light and flexible, which greatly improves the shift speed.
7. Meet various operation requirements

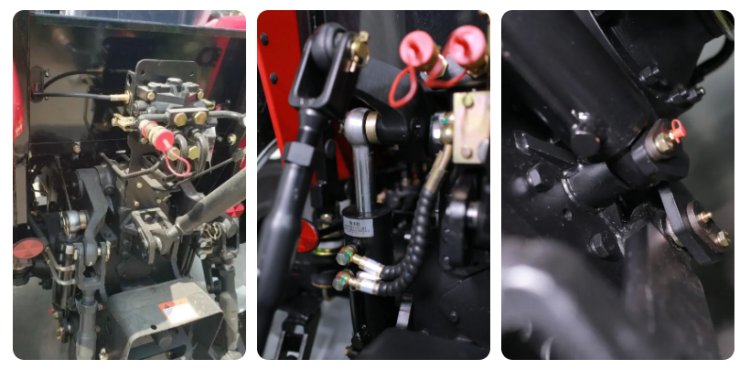

This year, a set of hydraulic output is added, and two sets of hydraulic output can be selected, which has various uses.

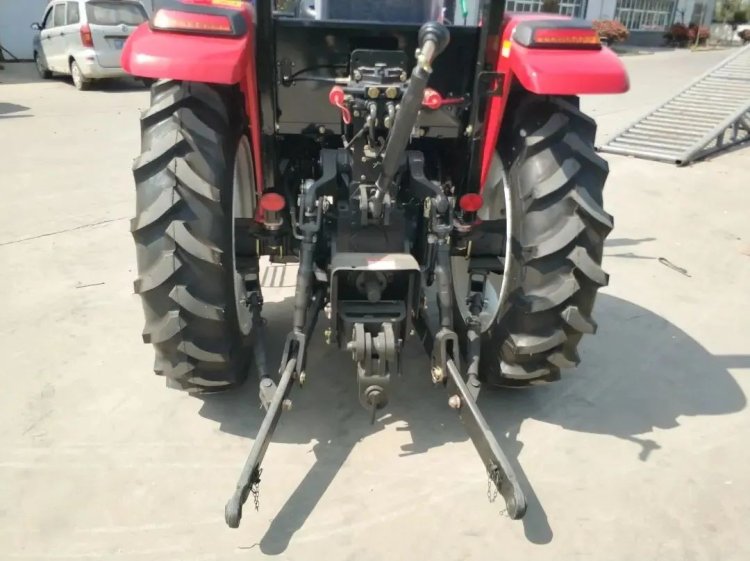

The suspension lower tie rod support adopts a simply supported beam hinged structure, which has greater bearing capacity and more stable and reliable performance.
The power output has 540/720 and 720/1000 multi gear output options, which better matches the performance of machines and tools. The transmission system is strengthened, and the power output is more efficient; It can be equipped with rotary cultivators, field returning machines, hydraulic overturning ploughs and other agricultural machines and tools, which can meet a variety of operational needs.
In the past, farmers used 18 horsepower and 20 horsepower for their own use. With the large circulation of land, the number of farmers and cooperatives who contracted land for farming increased sharply, and farmers' requirements for medium drag horsepower became higher and higher. First, they upgraded from 20 horsepower to 50-60 horsepower, and this year they increased to 70 horsepower.
The 704 launched by Dongfanghong this year also feels like standing on the air outlet.
