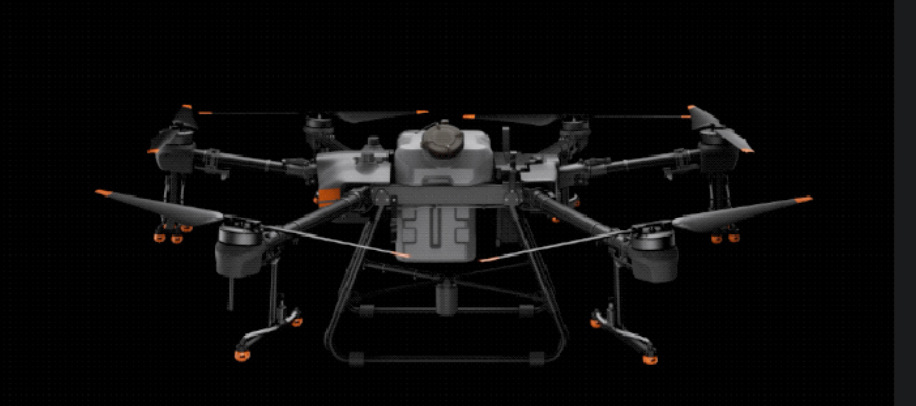

Dajiang T30 plant protection UAV
T30 increased the maximum load of the UAV to 40 kg, and the efficiency of field plant protection reached a new height
T30植保无人飞机
T30 plant protection UAV
数字农业新旗舰
New flagship of digital agriculture
T30 将植保无人飞机的最大载重提升至 40 公斤，
T30 increases the maximum load of the plant protection UAV to 40 kg,
大田植保效率达到新高度；
The efficiency of field plant protection has reached a new height;
革命性的“变形”机身，果树植保喷洒效果出类拔萃；
The revolutionary "deformation" fuselage makes the spraying effect of fruit tree plant protection outstanding;
配合数字农业解决方案，科学指导减肥增产
With digital agriculture solutions, scientific guidance to reduce weight and increase production
超强动力
Super power

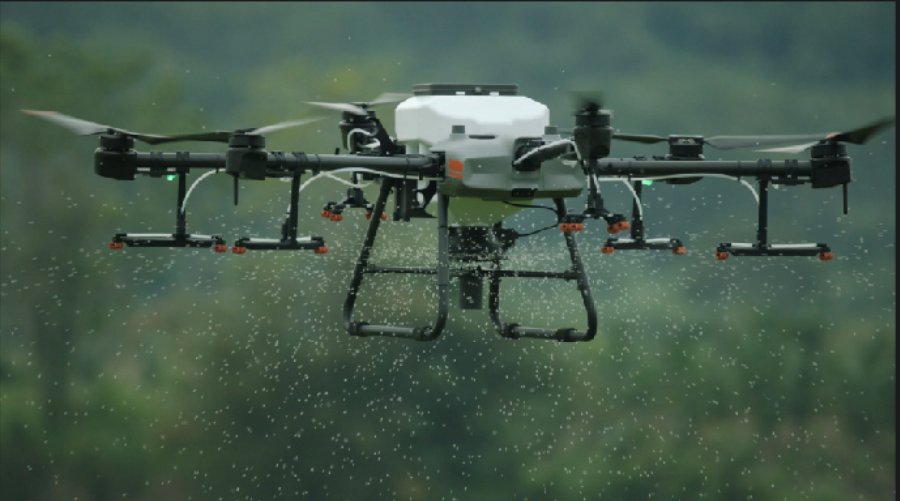

超能喷洒
Super spray

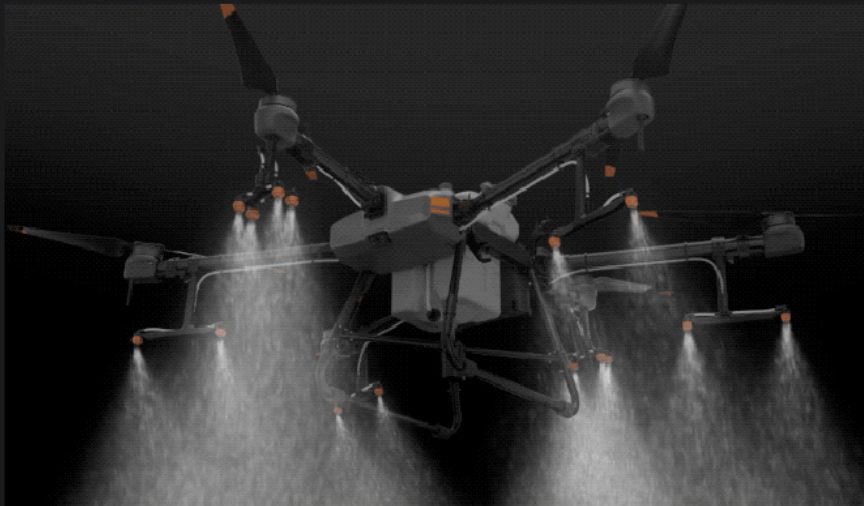

T30配备30升超大药箱，全新16喷头布局，
T30 is equipped with a 30 liter large medicine box and a new 16 nozzle layout,
9米超大喷幅，8组电磁阀独立变频控制，
9 m large spray width, 8 groups of solenoid valve independent frequency control,
1小时可喷洒大田240亩1，效率达人工的100倍2。
It can spray 240 mu 1 of field in 1 hour, and the efficiency is 100 times of that of manual.

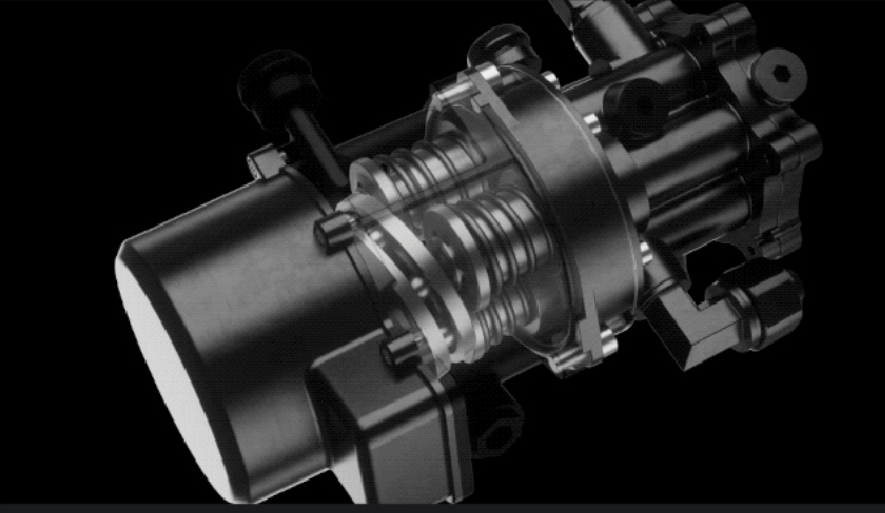

行业首创水平对置六缸双柱塞泵设计，
The industry's first horizontal opposed six cylinder double plunger pump design,
提供强劲动力，带来8升/分钟的超大流量。
Provide strong power, bring 8 L / min super flow.
连续液位计与流量计，可实时监控剩余药量与流量。
Continuous liquid level meter and flow meter can monitor the remaining dosage and flow in real time.

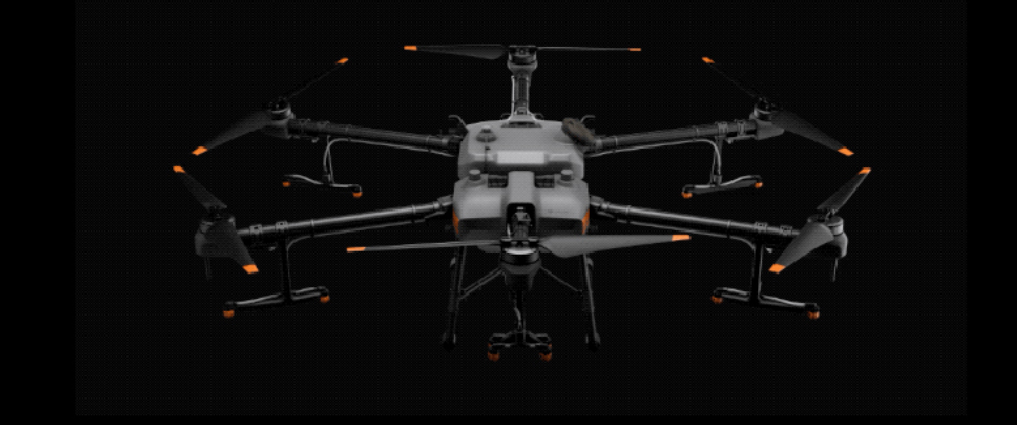

变形翼
Morphing wing
果树大难题，从此小意思
Big problem of fruit trees

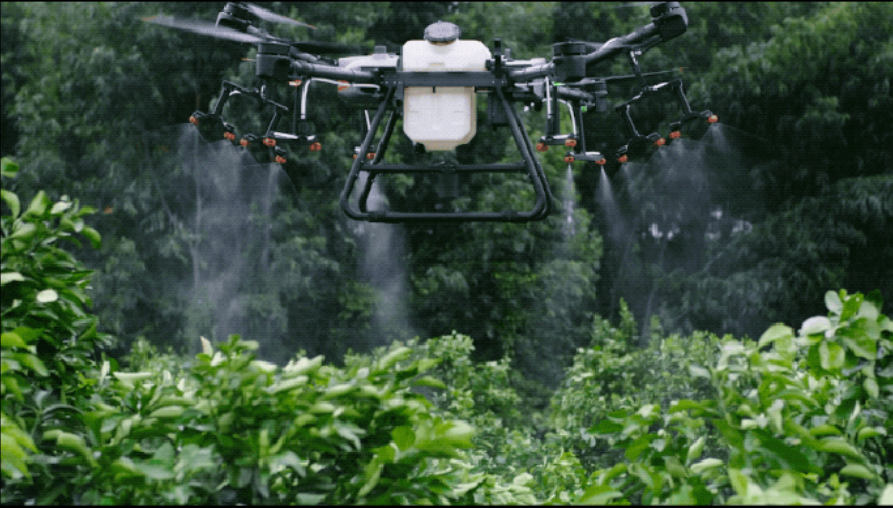

革命性的枝向对靶技术可调节机臂角度，
The revolutionary branch targeting technology can adjust the arm angle,
斜角喷洒穿透厚冠层，
Oblique spray penetrated thick canopy,
确保药液上下均匀附着，雾滴数量提升100% 3
Ensure that the liquid medicine is evenly attached up and down, and the number of droplets is increased by 100% 3
撒肥撒种
Spread fertilizer and seed
一机多用
One machine with multiple functions
全新播撒系统配备30公斤超大载重，
The new broadcasting system is equipped with a super heavy load of 30 kg,
7米宽播幅，每小时可播撒1吨尿素4。
7 meters wide, 1 ton urea 4 per hour.
实时重量监测，精准无料报警。
Real time weight monitoring, accurate alarm without material.
整机防护等级IP67，可水洗抗腐蚀，
The protection grade of the whole machine is IP67, washable and corrosion-resistant,
满足撒肥、播种、投饲等多场景作业。
It can meet the multi scene operations such as fertilizer spreading, sowing and feeding.
三重结构保障
Triple structure guarantee
防水防尘防腐蚀
Waterproof, dustproof and anti-corrosion
整机防护等级IP67,核心模块采用独立腔体设计，
The protection level of the whole machine is IP67, and the core module adopts independent cavity design,
板级灌封，全防水接插件和模块连接器，
Board level potting, full waterproof connector and module connector,
实现三层防护。
Three layers of protection are realized.
无惧药液、尘土、肥料侵袭
Fearless of liquid medicine, dust and fertilizer
轻松折叠
Easy to fold
一键到位
One key in place
T30采用全新桁架式结构，结实可靠。
T30 adopts a new truss structure, which is solid and reliable.
整机折叠后机身体积缩小80%。
After folding, the fuselage volume of the whole machine is reduced by 80%.
折叠机构到位自检,一键锁紧，双重防松，安全便捷。
Folding mechanism in place self-test, one key locking, double locking, safe and convenient.
球形雷达系统
Spherical radar system
全方位探测,全天候适用
All directional detection, all-weather application

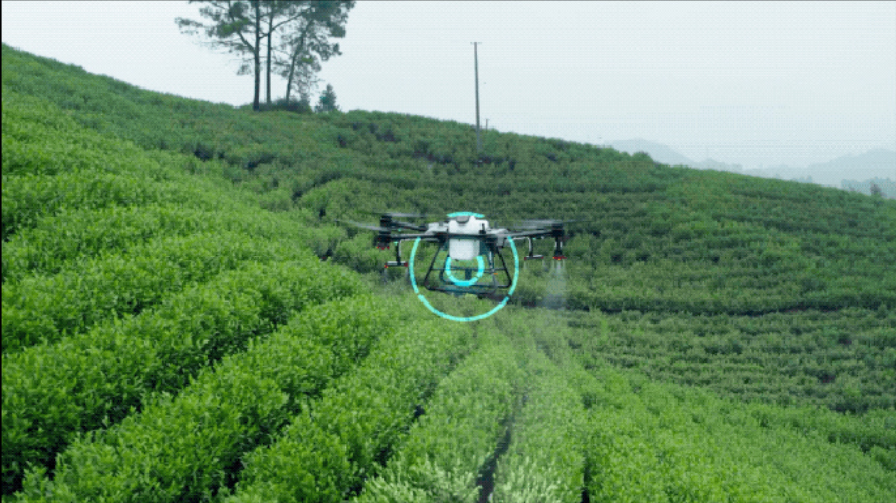

T30搭载行业首创球形雷达系统，
T30 is equipped with the industry's first spherical radar system,
新增顶视角，飞行无盲区。
New top view, no blind zone.
可全环境、全天候、全向感知障碍物及周围环境，
It can sense obstacles and surrounding environment in all environments, all-weather and all directions,
实现智能绕障及仿地飞行，安全护航。
Realize intelligent obstacle avoidance and simulated ground flight, safe escort.
前后双摄
Double shot
更远图传
Further picture transmission
T30搭载双FPV摄像头，前后视野一目了然。
T30 is equipped with dual FPV cameras, with a clear front and rear view.
同时，高亮探照灯让夜视效果提升1倍，
At the same time, the highlight searchlight can double the night vision effect,
夜间作业更安心。
Working at night is more comfortable.

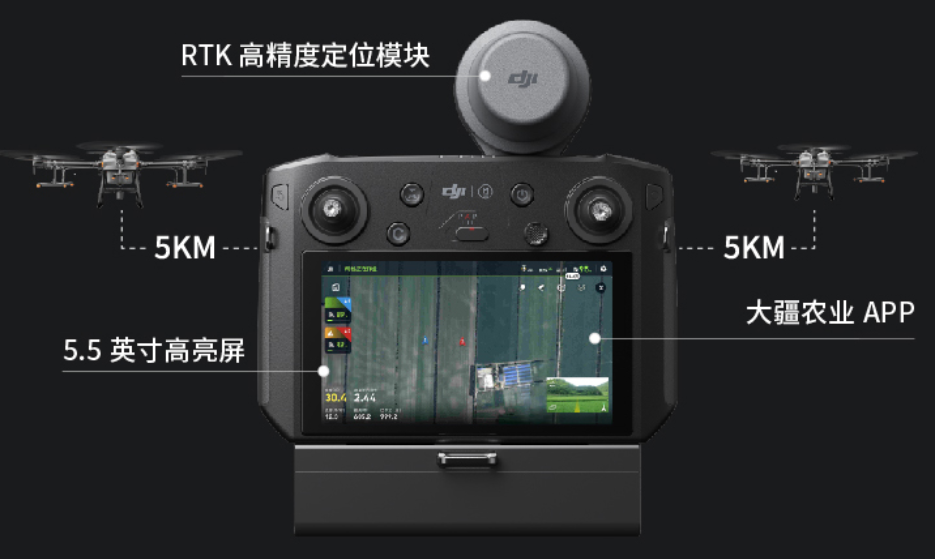

全新遥控器，带来5公里稳定图传，
The new remote control brings 5km stable map transmission,
信号稳定，作业无忧。
The signal is stable and the operation is easy.
标配厘米级定位模块，飞行精准。
Standard centimeter level positioning module, accurate flight.
一控多机，效率翻倍。
With one control and multiple computers, the efficiency is doubled.
两电快充
Fast charging of two batteries
循环轻松
Easy cycle
全新智能飞行电池单电可循环1000次5，
The new intelligent flight battery can cycle 1000 times 5 times,
作业达30000亩，电池亩使用成本降低36%。
The operation area is 30000 mu, and the cost of battery is reduced by 36%.
搭载充电站或充电管家，10 min完成急速充电
Equipped with charging station or charging manager, rapid charging can be completed in 10 minutes
，仅需两组智能电池即可循环作业。
Only two sets of smart batteries are needed to cycle.

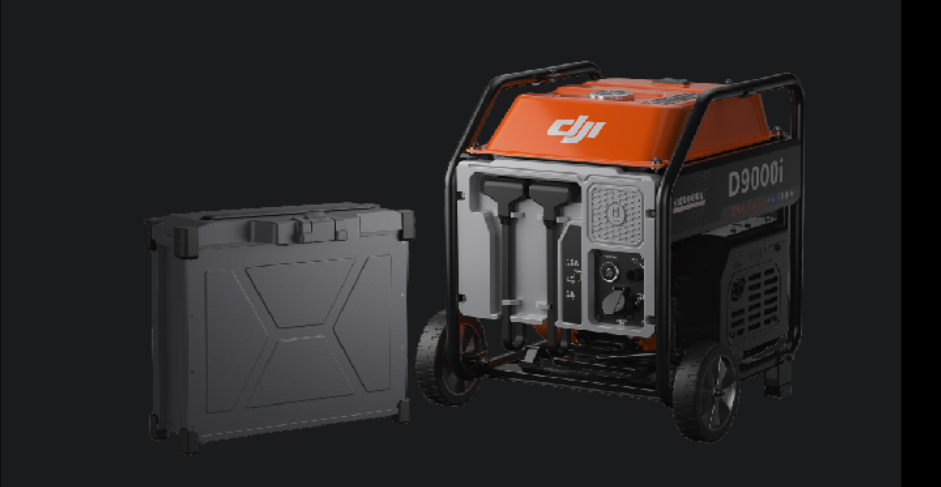

D9000i全能变频充电站
D9000i universal variable frequency charging station
一体集成， 既是发电机，又是充电器
Integrated, both generator and charger
一机多用,60V直流+ 220V交流
AC multi-purpose 60V + 220V
一个顶俩，7200w充电功率
One top two, 7200W charging power
一键启动，双通道轮充
One key start, dual channel wheel charging
25升油箱，可充42组电池
25 liter tank with 42 batteries
十
ten
T30智能飞行电池
T30 Intelligent Flight battery
1000次循环，超长寿命
1000 cycles, super long life
29000毫安时，超大容量
29000 MAH, super capacity
5C充电，落地即充，双电循环
5C charging, charging on the ground, double electric cycle
板级灌封防护，防水耐腐蚀
Board level pouring protection, waterproof and corrosion resistant

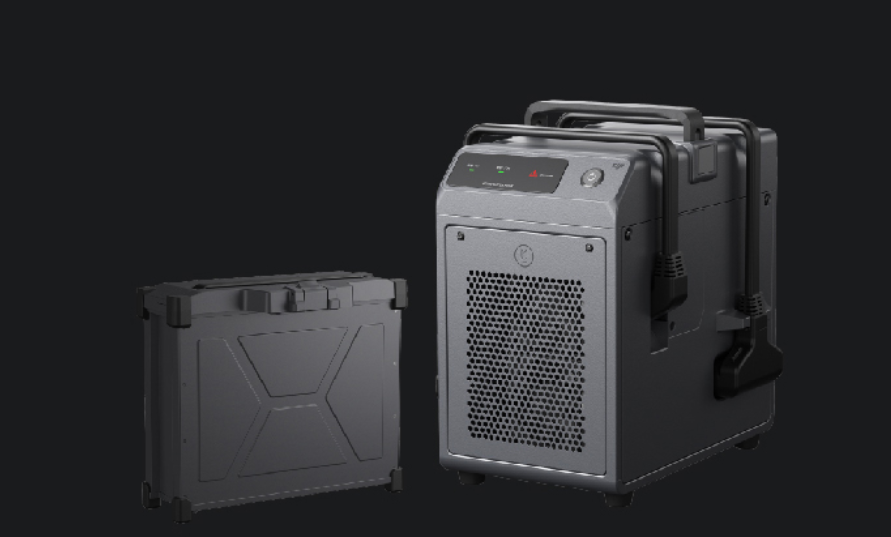

T30 智能充电管家
T30 intelligent charging manager
7200W充电功率
7200W charging power
10分钟5C超快充
10 minute 5C ultra fast charging
搭配备用电源系统
With standby power system
十
ten
T30智能飞行电池
T30 Intelligent Flight battery
1000次循环,超长寿命
1000 cycles, super long life
29000毫安时，超大容量
29000 MAH, super capacity
5C充电，落地即充，双电循环
5C charging, charging on the ground, double electric cycle
板级灌封防护，防水耐腐蚀
Board level pouring protection, waterproof and corrosion resistant
