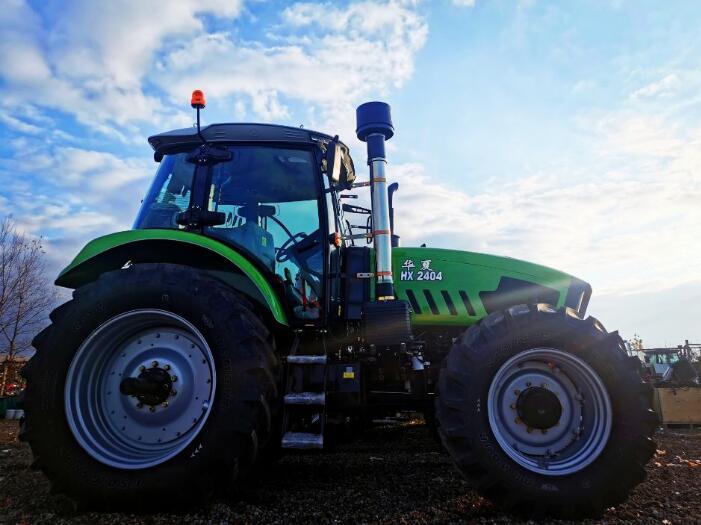

Huaxia 2404 4WD Tractor

Technical parameters of Huaxia 2404 tractor
Project unit design value
Machine model/Huaxia 2404
Complete machine type/√ Four wheel drive □ Two wheel drive □ Crawler type
Whole machine usage/√ General purpose □ Intermittent tillage (high gap) □ Orchard and greenhouse greenhouse operations
Overall dimensions of the entire machine (length × wide × Height) mm 6050 × 2390 (2360-2660) × 3300 (twin: 6050 × 3430 × 3300)
Whole machine wheelbase or track grounding length mm 3010
Complete wheel gauge (front/rear) or track gauge mm 1905, 2020 (twin 2030)/1850-2440 (twin 2540)
Common wheel gauge (front/rear) or track gauge mm for the entire machine 2020/1855 (twin 2030/2540)
Adjustment method for overall wheel base (front/rear wheel)/front wheel stepless adjustment, rear wheel stepless adjustment
Minimum ground clearance of the entire machine mm 480
Minimum operating mass of the entire machine kg 7780
Standard counterweight for the entire machine (front/rear) kg Front counterweight 650, rear counterweight 465, (dual tire front counterweight 650, rear counterweight 0)
Maximum counterweight of the entire machine (front/rear) kg Front counterweight 1135, rear counterweight 720, (dual tire front counterweight 1135, rear counterweight 0)
Whole machine track grounding pressure kPa/
Whole machine gear number forward/reverse/crawling/forward 32/backward 32/crawling 0
Overall gear range: main/auxiliary/shuttle/4/4/2/1+1
Theoretical speed of each gear of the entire machine in km/h forward: 0.71, 0.93, 1.15, 1.43; 1.38, 1.81, 2.23, 2.78; 1.57, 2.04, 2.53, 3.14; 3.53, 4.62, 5.71, 7.08; 3.04, 3.97, 4.91, 6.09; 5.89, 7.70, 9.50, 11.81; 6.66, 8.70, 10.77, 13.35; 15.03, 19.65, 24.31, 30.14 Backward: 0.59, 0.77, 0.95, 1.18; 1.14, 1.49, 1.85, 2.29; 1.29, 1.69, 2.09, 2.59; 2.92, 3.82, 7.72, 5.85; 2.51, 3.28, 4.06, 5.03; 4.87, 6.36, 7.87, 9.76, 5.50, 7.19, 8.90, 11.03; 12.42, 16.24, 20.09, 24.91
Connection method between the entire engine and clutch/direct connection
Whole machine starting method/electric starting
Overall power output shaft power kW ≥ 141.6
Maximum traction force of the entire machine kN ≥ 53.8
Rollover protection device (cab or safety frame) model/cab HX2404.38
Rollover protection device (cab or safety frame) type/six pillar cab
Production factory of tipping protection device (cab or safety frame)/Shandong Shuaike Machinery Manufacturing Co., Ltd
Certification certificate number or inspection report number of overturning protection device (cab or safety frame)/NW201802004
Certification unit or testing institution for overturning protection device (cab or safety framework)/Product Quality Testing Center of Shandong Agricultural Machinery Science Research Institute
Engine type/inline, direct injection, vertical, water-cooled, four stroke, turbocharged intercooled
Engine model/WP7G280E302
Engine manufacturer/Weichai Power Co., Ltd
Engine intake method/turbocharging and intercooling
Number of engine cylinders/6
Engine cylinder diameter × Stroke mm 108 × one hundred and thirty-six
Engine rated power kW 177
Engine rated speed r/min 2200
Engine Type Approval Certificate/CN FC G3 00 0137000014 00000 1
Engine air filter type/dry type
Engine air filter model/WP-KLQ
Engine starter model/WPQDJ
Engine cooling method/pressure closed cycle water cooling
External dimensions of exhaust pipe sound-absorbing chamber (length × wide × Thickness or diameter × Length) mm 300 × six hundred
Exhaust pipe silencer (including silencing chamber) weight kg 13
Headlamp model/TG-HB3-80
Headlamp manufacturer/Changzhou Tiangong Plastic Industry Co., Ltd
Headlamp Certification Certificate Number or Inspection Report Number/(2017) Commission Letter Lamp Class 05010
Certification unit or testing institution/Jiangsu Provincial Automotive Lamp Product Quality Supervision and Inspection Center
Rearview mirror model/TD904.451C
Rearview Mirror Production Factory/Jiangsu Danshuai Vehicle Parts Co., Ltd
Rearview mirror certification certificate number or inspection report number/QD15331BD9901
Rearview mirror certification unit or testing institution/National Motor Vehicle Quality Supervision and Inspection Center (Chongqing)
Front windshield/door and window glass model/nominal thickness 5.0mm
Front windshield/door and window glass production factory/Linyi Dongcheng Glass Co., Ltd
Front windshield/door and window glass certification certificate number or inspection report number/2.01605E+15
Front windshield/door and window glass certification unit or testing institution/China Building Materials Inspection and Certification Group Co., Ltd
Driver seat model/SMT1
Driver seat type/mechanically suspended
Driver seat manufacturer/Weifang Shumeite Machinery Co., Ltd
Seat belt model/FS2001
Seat Belt Production Factory/Yangzhou Fusheng Automotive Parts Factory
Safety belt certification certificate number or inspection report number/QA16542LV6801
Safety belt certification unit or testing institution/National Car Quality Supervision and Inspection Center
Fuel tank model/TG
Fuel tank volume L 300
Steering system type/front wheel hydraulic steering
Steering gear type/cycloidal rotary valve type
Steering system hydraulic steering normal working pressure MPa 16
The maximum working pressure marked on the hydraulic steering hose of the steering system, MPa 20
Bursting pressure of hydraulic steering hose in the steering system MPa 75
Hydraulic steering hose manufacturer/Hebei Longzhong Rubber Products Co., Ltd
Type of service brake system/hydrostatic, wet, disc
Parking brake system type/mechanical hand brake
Safety starting device type/HFT300.48.033
Front drive axle type of transmission system/√ Dry land type □ Paddy field type
Transmission clutch type/single disc, dry, double acting
Transmission type of transmission system/4 × four × two × (1+1) Composition formula
Main transmission shift mode/synchronizer of the transmission system
Shifting method/meshing sleeve of the transmission auxiliary gearbox
Transmission Main Transmission Housing (Part Number)/HX TV2404-1
Transmission rear axle housing (part number)/HX TV2404-2
Central transmission type of transmission system (front/rear)/spiral bevel gear/spiral bevel gear pair
Transmission differential type (front/rear)/closed, 4 planetary gears/closed, 4 planetary gears
Transmission differential lock type (front/rear)/without/pin type
Final transmission mode of the transmission system (front/rear)/single stage planetary gear/single stage planetary gear
Rack type/frameless
Tire models for the walking system (front/rear)/540/65R30/650/65R42
Tire pressure of the walking system (front/rear)/field: 118-138/118-138 Transportation: 160-180/160-180
Traveling system track type//
Number of track shoes for the walking system, pieces//
Width of walking system track shoes//
Working device hydraulic suspension system type/split type
Working device suspension device type/rear three-point suspension
Working device suspension device category/3 categories
Working device adjustment method/force and position adjustment, floating control or strong rise/fall
Working device hydraulic oil pump type/gear pump
Working device hydraulic oil pump model/CBTL-F436F 414-AFJR-G
Working device hydraulic output device/4 sets of hydraulic outputs
Working device safety valve full opening pressure MPa 16.0-17.5
Working device power output shaft type/rear mounted, independent
Number of splines for the power output shaft of the working device/8 (rectangular splines) Optional: 6 (rectangular splines), 21 (involute)
Working device power output shaft spline outer diameter mm ¥ 38 (rectangular spline), optional ¥ 35 (rectangular spline), ¥ 45 (involute)
Working device power output shaft speed r/min 540/1000 (optional 760/850, 760/1000)
Working device power output shaft transmission ratio/3.428/2.052 (2.944/2.647, 3.615/2.053)
Maximum lifting force on the working device frame kN ≥ 42.5
Optional running tire models (front/rear)/front 16.9-28, rear 18.4-42 (twin)
Optional running system tire pressure (front/rear)/Field: 118-138/118-138 Transportation: 160-180/160-180
Optional running tire models (front/rear)/front 16.9-28, rear 20.8-38 (single tire)
Optional running system tire pressure (front/rear)/Field: 118-138/118-138 Transportation: 160-180/160-180
Optional headlight model/1804 front headlights
Optional Headlamp Manufacturer/Changzhou Jiashifeng Mechanical Parts Co., Ltd
Optional Headlamp Certification Certificate Number or Inspection Report Number/(2015) Commission Letter Lamp Category No. 2869
Optional headlamp certification unit or testing institution/Jiangsu Provincial Automotive Lamp Product Quality Supervision and Inspection Center
Optional headlight model/ZJ-2017
Optional Headlamp Manufacturer/Changzhou Zhijiao Lamp Factory
Optional headlamp certification certificate number or inspection report number/1709-QD01-005
Optional headlamp certification unit or testing agency/Jiangsu University Vehicle Product Laboratory
